INFRA FOR EMBODIED AI · LAY THE RAIL BETWEEN ACTION MODELS AND PHYSICAL ROBOTS

Open-RAIL: A Real-time Asynchronous Inference Linker for VLA/WAM Models and Robots

Asynchronous Inference · Motion Smoothing & Speed Scaling · Closed-Loop Evolution

Open‑RAIL is a plug‑and‑play open‑source asynchronous inference middleware for diverse VLA/WAM models and heterogeneous robots. Using two‑stage trajectory smoothing and fusing, it resolves inference‑control mismatch and motion jitter to boost execution speed, motion smoothness and task success rates while preserving original action policies. It supports runtime real‑robot data recording and human‑in‑the‑loop intervention for closed‑loop reinforcement learning.

Key Features

  • Asynchronous Pipeline — decouples 5‑10 Hz VLA inference from 200‑500 Hz motor control, removes inference‑control waiting latency.
  • Two‑stage Trajectory Smoothing — achieves near C² continuity and motion jitter drastically suppressed with acceleration std reduces ~100× ( 10+ → 0.1 rad/s²).
  • Drop‑in Compatibility — supports 12 VLA/WAM models across 9 families & 3 heterogeneous robots in this release (Unitree G1 coming soon); new model adaptation needs only 50‑100 lines of code without retraining.
  • Cloud‑Edge‑End Deployment — Server‑Client architecture supports robot‑local, edge and cloud execution over wired/Wi‑Fi/5G with respective latency of end‑side 3‑5 ms, edge 35‑45 ms, cloud 80‑120 ms, requiring zero upper‑level code modification.
  • Enhanced Execution Throughput — achieves up to 2.09× speedup against raw policy output, outperforming tele‑operation speed with no need for recollecting training data.
  • Universal Task Success Boost — lifts model success rate up to 0.95, with absolute gain Δ from +0.10 to +0.725 (evaluated on π₀.₅ and GR00T‑N1.5).
  • Closed‑loop Evolution — auto LeRobot‑formatted real‑robot episode recording plus time‑aligned human‑in‑the‑loop tele‑correction to enable continuous iterative improvement.
GitHub Gitee AI.Huanxin Technical Paper Quick Start

China Mobile Embodied Intelligence Industry Innovation Center Presented by Embodied Model Team (TAO Team)

RAIL ARCHITECTURE

Open‑RAIL: The Infrastructure Bridging Diverse VLA/WAM Brains and Heterogeneous Robot Bodies

Open-RAIL Architecture Overview (click to enlarge)

Open-RAIL RAIL Architecture

RAIL Server

Task Scheduling · Model Inference

RAIL Client

Perception Collection · Realtime Data Manager · Motion Smoothing · Robot Execution · Human-in-the-loop Tele-operation

Web Panel

Execution Monitoring · Parameter Tuning · Camera & Trajectory Visualization · Evaluation & Data Recording · Robot Manual Control

OPEN-RAIL adopts a ZMQ-powered distributed pipeline: the RAIL Server performs task scheduling and VLA model inference to produce action chunks; the RAIL Client handles perception collection, time synchronization, trajectory smoothing and robot execution with human-in-the-loop tele-operation; the Web Panel supports runtime monitoring, parameter tuning, visualization, data recording, evaluation and manual robot control. Additional modules enable tactile sensing and cloud-edge collaborative closed-loop embodied AI operation.

CORE CAPABILITIES

Operable ｜ Stable ｜ Compatible ｜ Evolvable

Capability 1

Operable

Zero-code operation — Monitor runtime status, tune parameters / instructions, and visualize trajectories / cameras through an user-friendly Web Panel.

Open-RAIL ships with a browser-based Web Panel that turns the pipeline into something anyone can operate without writing code — live stats and camera streams, 40+ runtime parameters tunable on the fly, and one-click run control, all from a single console.

40+
Real-time tunable parameters, e.g., speed, smoothing mode.
20+
Monitored runtime status, e.g., fps, latencies.
4 Hz
Live stats refresh rate
3
Independent toggling of perception, inference and control pipelines
▸ Expand technical details
  • •Live monitoring: WebSocket pushes runtime stats every 250 ms — FPS, latencies, buffer occupancy, CPU / GPU / memory, bandwidth, and ZMQ connection state.
  • •Live visual: camera and scene video streamed over the visual WebSocket (port 8765) for real-time situational awareness.
  • •Config & instruction tuning: hot-patch YAML config (40+ runtime parameters) and natural-language task instructions at runtime — no restart required.
  • •Independent run control: observe, infer, and control threads can be started and stopped independently — e.g. pause inference while keeping observation live, or stop control without dropping the data stream.
  • •Manual robot control: take over via teleoperation to directly drive the robot and correct actions in real time when the model misbehaves.
  • •Episode review: browse, replay, and delete LeRobot-format episode and evaluation records for offline analysis and further training.
RAIL Pipeline Inference Robot Body Data Mgmt Web Panel Operator Console Monitor Tune Control Review Stats / Video Config / Instruction Start / Pause / Stop Episode Records

Capability 2

Stable

Asynchronous inference pipeline + Intra-Chunk Smoother & Inter-Chunk Fuser

A three-thread asynchronous pipeline (observation 30 Hz, inference 5-10 Hz, control frequency 200–1K Hz) decouples robot execution from VLA model inference. The control thread reads pre-filled action buffers, reducing idle-wait latency from full inference time to near-zero. Two-stage trajectory post-processing composed of Intra-Chunk Smoother and Inter-Chunk Fuser suppresses in-chunk jitter and cross-chunk discontinuities, dropping joint acceleration std-dev from 10+ down to 0.1 rad/s², meanwhile achieving up to 2.09× task-execution speedup versus raw VLA baseline.

>200 Hz
Control frequency
10+ → 0.1
Joint accel. std-dev (rad/s²)
~0 ms
Idle wait latency
2.09×
Max task-execution speedup
▸ Expand technical details
  • •Asynchronous pipeline: Three independent threads (observation / inference / control) communicate via queues. The control thread runs at configurable 200–1K Hz and consumes pre-filled action buffers and never blocks for model inference. Idle waiting latency is decoupled from inference latency (near zero), absorbing the large frequency gap between low-rate VLA inference and high-frequency robot motor control.
  • •Intra-Chunk Smoother — eliminates jitter inside individual action chunks. Supported modes: raw baseline, CubicSpline interpolation for joint trajectories + zero-order-hold for grippers, least-squares polynomial fitting (configurable polynomial degree, default 4). Polynomial fitting derives velocity and acceleration from trajectory derivatives; gripper commands adopt local threshold filtering. Output yields continuously-differentiable trajectories to suppress intra-chunk oscillation.
  • •Inter-Chunk Fuser — eliminates abrupt jumps between successive action chunks. Supported modes: search-action motion resync, PD-tracking smooth-velocity with velocity-acceleration clamping, default quintic min-jerk blending with adaptive segment length, direct sync pass-through. It enforces smooth state transition across chunk boundaries and avoids discontinuity spikes.
  • •Overall effect: Joint acceleration standard deviation drops two orders of magnitude (10+ → 0.1 rad/s²), mitigating mechanical shock to robot hardware. The framework enables faster-than-teleoperation task execution with up to 2.09× speedup compared against unprocessed raw VLA outputs.
Three-thread asynchronous pipeline Time 0 ∞ Observation Thread 30 Hz Obs. Buffer Latency (Model Inference) Latency (Model Inference) Latency (Model Inference) Inference Thread 5–10 Hz VLA Out Buffer Action Chunk i Action Chunk i+1 Control Thread 200–1000 Hz CMD Buffer Action Chunk i Action Chunk i+1 Latency (Post Process) Latency (Post Process) Latency (Post Process)

Capability 3

Compatible

Switch models, robots, or deployments without rewriting upper logic

RobotBase unified hardware interface, standardized inference interface, and Server-Client distributed architecture collapse robot swaps, VLA-model swaps, and deployment swaps into low-level configuration.

3
Heterogeneous humanoid robots in this release
12
Mainstream VLA/WAM models supported (9 families)
<100
Lines of code to integrate a new model
▸ Expand technical details
  • •Switch robots: RobotBase unified hardware interface, action_layout unified action mapping; AgiBot G1, China Mobile Lingxi and NAVIAI-WA2 ship in this release, with Unitree G1 coming soon.
  • •Switch VLA models: standardized input/output inference interface; already supports 12 models across 9 families — GR00T N1 / N1.5 / N1.6, π0, π0.5, TAO, GO1, SmolVLA, ACT, RDT, DM0.5, WALL-X; integrating a new model needs only 50–100 lines of business code.
  • •Switch deployments: Server-Client end-edge-cloud distributed architecture; Server can run on local body / edge / cloud, Client on the robot; switch deployment by changing only the comms address with zero upper-logic changes and auto-reconnect heartbeat.
ACT GR00T SmolVLA π0.5 ··· RAIL-Server Unified Model Interface Inference Thread Pool VLA calling · parallel inference · sorting Action Chunks Observations ZMQ Communication RAIL-Client Ctrl. Thread frequency scaling interrupt handling Post-Process intra-chunk smoothing inter-chunk fusing Obs. Thread img compression visualization Unified Robot Interface Unitree G1 AgiBot G1 Lingxi NAVIAI-WA2

Capability 4

Evolve

Running is data, intervention is teaching — the train-collect-evaluate flywheel

Automatic real-robot recording, online scoring, and human teleop correction form the train-collect-evaluate loop: inference execution → runtime collection → task evaluation → model retraining.

LeRobot
Standard episode format data recording
Score
Success rate and task progress recording
Teleop
Human-in-the-loop intervention and correction
▸ Expand technical details
  • •Collect by running: real-robot runs auto-record images, joints, model outputs, and control commands into standard Parquet Episode data with incremental appends.
  • •Evaluate by executing: sub_task online scoring written synchronously, exportable as JSON / CSV and linked to the Episode.
  • •Teach by intervention: VR teleop human-correction hybrid mode; when the model errs, a human intervenes and the human trajectory is time-aligned with the original inference trajectory to produce high-quality training samples.
  • •Train-collect-evaluate flywheel: inference execution → runtime data collection → task evaluation feedback → model retraining; one pipeline pushes models to the robot and returns real-robot data back for training.
Train-Collect Self-evolving flywheel Infer & Exec Deploy Collect Collect Evaluate Evaluate Retrain Retrain

PLUG-AND-PLAY COMPATIBILITY

Drop-in compatibility with mainstream VLA/WAM models and robots

Swap a model, a robot body, or a deployment target without rewriting upper-layer logic — Open-RAIL adapts through low-level configuration.

Supported VLA/WAM Models

12 supported · 8 release soon

We define the Unified Model Interface (UMI), a standard interface for model inference that specifies input/output data formats and preprocessing methods. It currently supports major open-source VLA models, and we welcome community contributions to integrate additional models.

GR00T N1

NVIDIA GR00T humanoid foundation

GR00T N1.5

NVIDIA GR00T humanoid foundation

GR00T N1.6

NVIDIA GR00T humanoid foundation

π0

Physical Intelligence VLA

π0.5

Physical Intelligence VLA

TAO(ours)

China Mobile TAO Team VLA base model

GO1

AgiBot GO-1 generalist VLA policy

SmolVLA

HuggingFace SmolVLA VLA policy

ACT

Action Chunking Transformer

RDT

Robotics Diffusion Transformer

DM0.5

OpenDM diffusion policy

Wall-OSS-0.5

Wall-X policy

T-Rex

Release soon

Visual-prompt VLA

DeCAL

Release soon

DeCAL adaptation

DreamZero

Release soon

Zero-shot visuomotor policy

GigaWorld-Policy-0.5

Release soon

GigaWorld world-model policy

LingBot-VA

Release soon

LingBot VLA model

GR00T N1.7

Release soon

NVIDIA GR00T humanoid foundation

GR00T N1.7 EEF

Release soon

GR00T N1.7 end-effector variant

XVLA EEF

Release soon

XVLA end-effector variant

Supported Robots

3 in this release · 1 coming soon · 1 simulation backend

We define the Unified Robot Interface (URI), a standard hardware interface that unifies robot control commands and state feedback. It supports heterogeneous robot bodies plus a simulation backend, and we welcome community contributions to integrate more robot hardware.

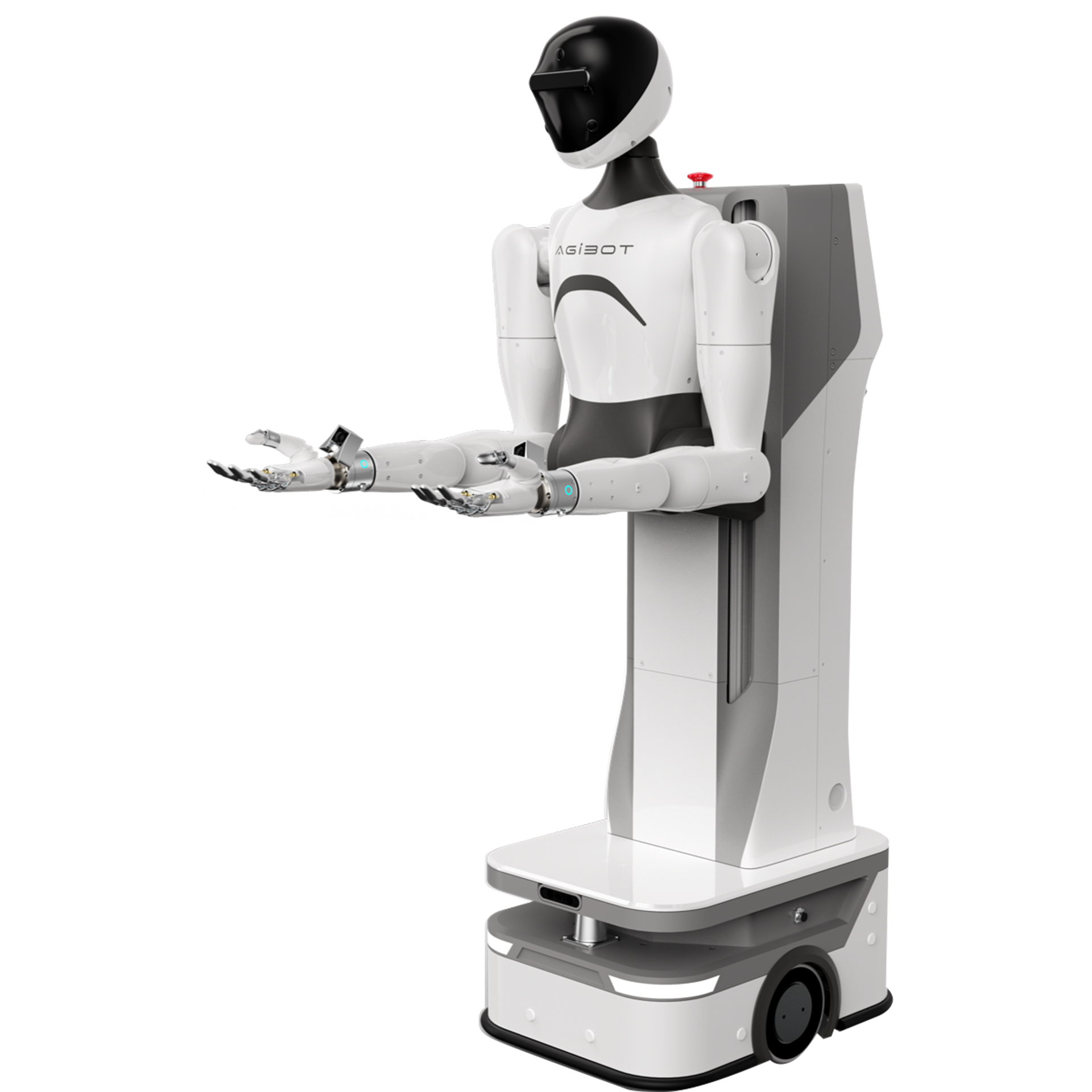

AgiBot G1

AgiBot G1

Dual-arm wheeled humanoid

GripperHand

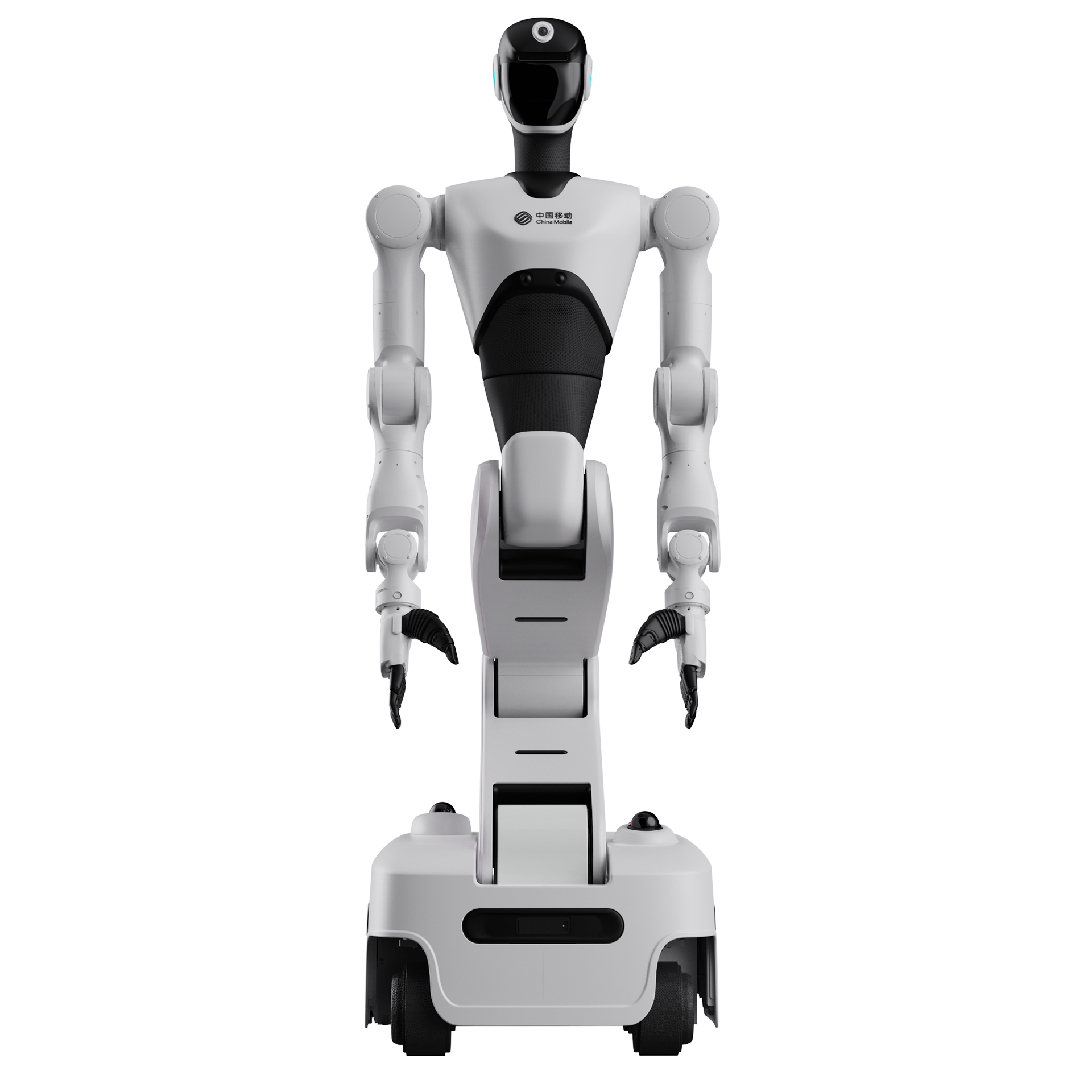

China Mobile Lingxi

China Mobile Lingxi

Folding wheeled dual-arm humanoid

GripperHand

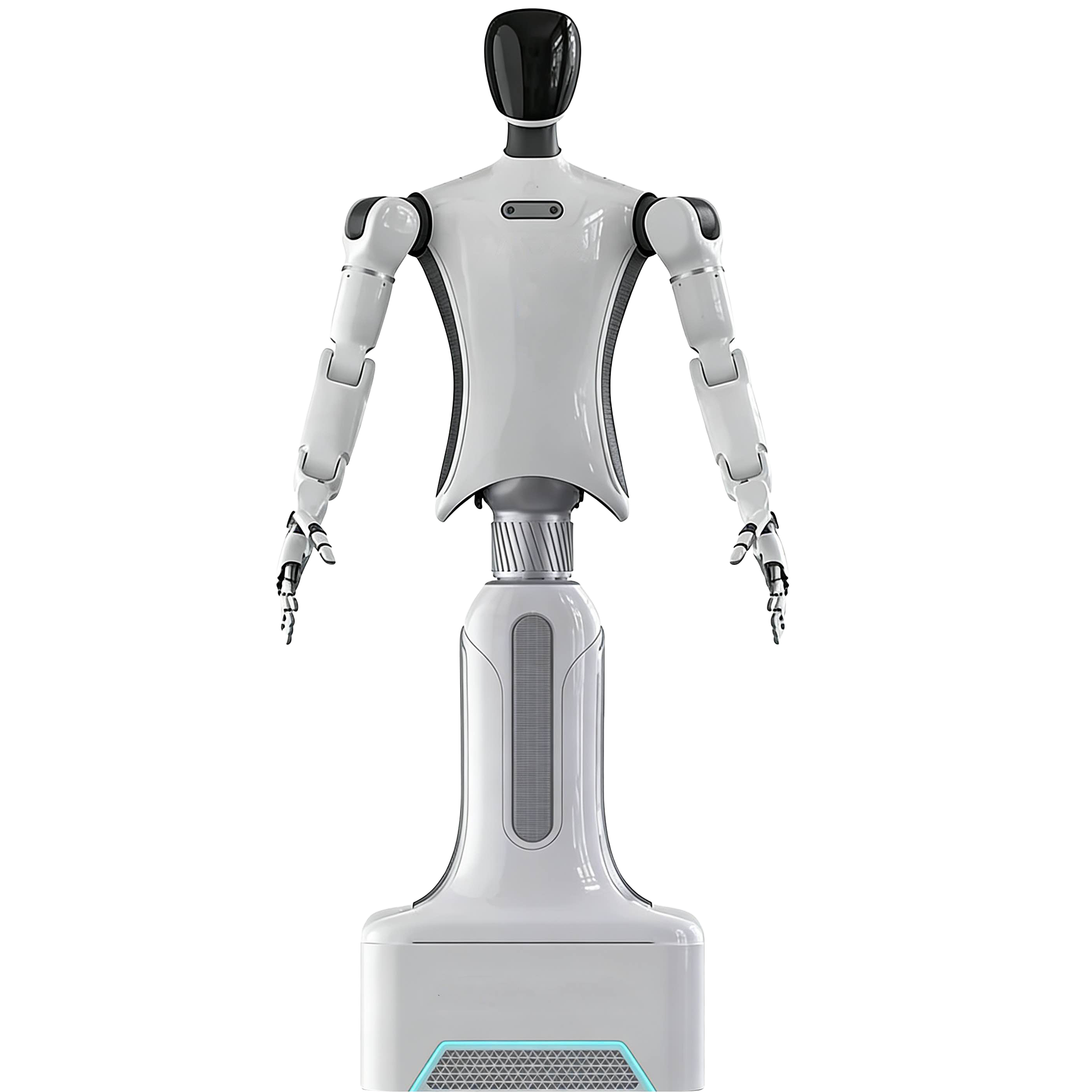

NAVIAI-WA2

NAVIAI-WA2

Dual-arm wheeled humanoid

Hand

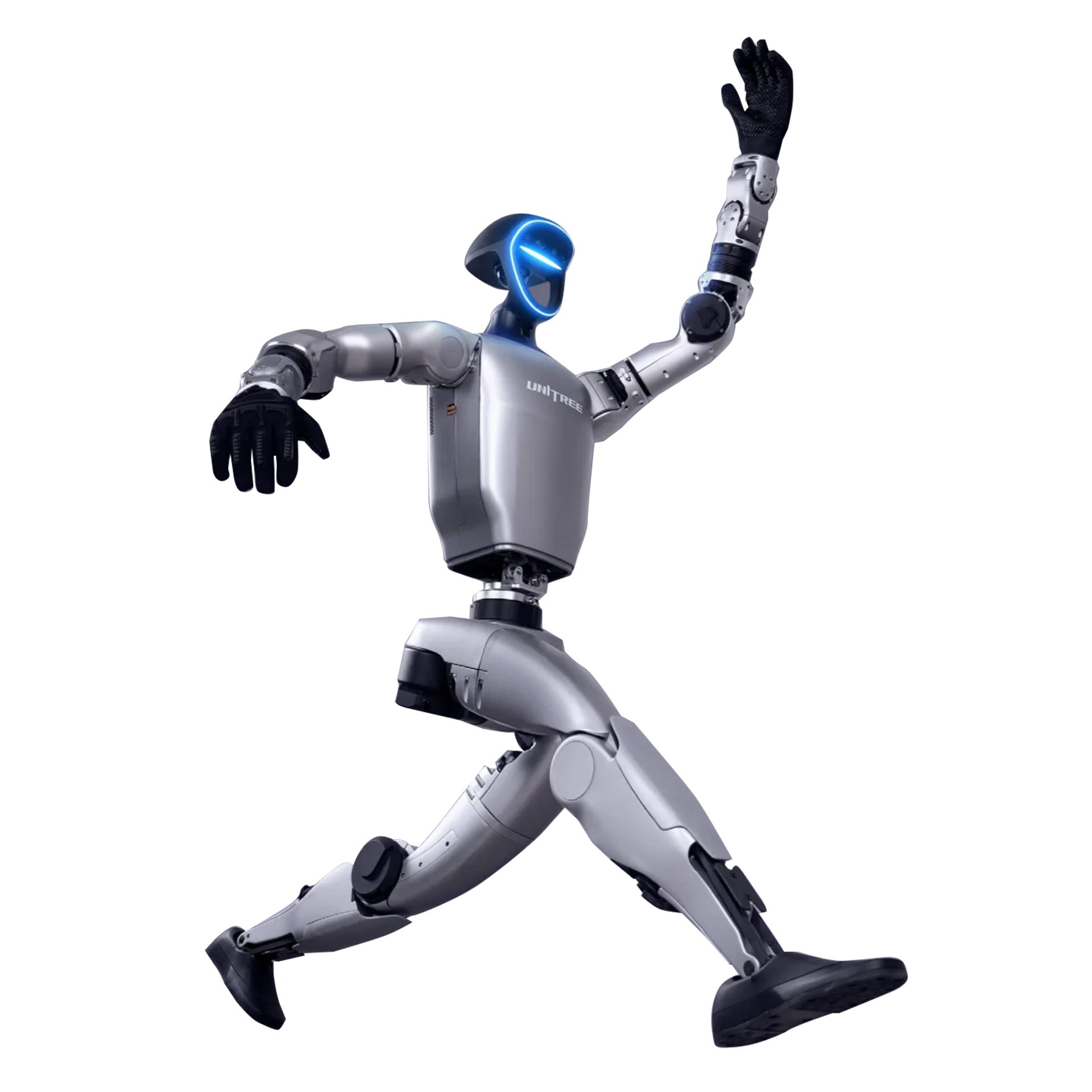

Unitree G1

Unitree G1

Dual-arm bipedal humanoid

Coming soon
Hand

Mock

LeRobot simulation backend, no hardware needed

Simulation

OPEN COMMUNITY

Build it once. Run it everywhere.

Everything here is ready to use, and what comes next is still unwritten — bring your model, your robot, your patch, or just what you learned. Questions and pull requests are welcome.

Who it's for

Pick the one that sounds like you.

Robot manufacturers

Ship one integration, and every model we have adapted runs on your robot — 20 models, plus every model the community adds later. You integrate once, not once per model.

Model developers

Integrate once, and your model runs on every robot we have adapted — 4 heterogeneous robots, with no robot-specific code. Each one means one more team that can run your model and reproduce your results.

Research institutions

Swap the model, the robot or the config — collection, evaluation and recording stay on the same path, so every combination is measured the same way, in the same data format. A comparison is one config change away, not another integration.

Solution integrators

A scenario you tune once is a scenario you can deploy again — next site, next customer, same config. On-device, edge, or cloud: same code, one endpoint to change.

Ways to contribute

Integrations

Bring your robot or model

Robots use URI, models use UMI — both already defined, and everything on the compatibility list is wired through one of them: 20 models and 4 robots. One integration — your model on every robot, every model on your robot. Model side needs no hardware: develop against recorded data.

Add a model Add a robot

Shared runtime

Improve the shared core

Smoothing, evaluation, data recording and transport sit in the shared runtime — the same path every model and every robot runs on. Change one module here, and every model–robot pair gets it.

Add a smoother Read the architecture

Tooling & docs

Share what you learned

The docs, the Web Panel, visualization, config — all open, all ready to use today. A better config, a pitfall you hit, a tip worth passing on: that is a contribution, and most first PRs land here. Not sure where to start? Come talk to us first — asking counts too.

Browse the docs Ask a question Report a problem

Get the code

GitHub Gitee AI.Huanxin

Ready to contribute? Read CONTRIBUTING.md Open a pull request

GET STARTED

Three-Step Workflow: Run VLA/WAM Models for Robot Manipulation Using Open‑RAIL

Step 1

Set Up

  1. Prepare the Environment

    Install the required dependencies and set up the Open-RAIL runtime environment.

  2. Start the Model Server

    Select the VLA/WAM model and checkpoint, then launch the inference server.

  3. Launch the Web Client

    Start the Web Client and open the Open-RAIL interface in your browser.

Step 2

Connect

  1. Load the Robot Configuration

    Select the target robot and load its corresponding configuration.

  2. Review and Apply Settings

    Check camera inputs, robot states, action mappings, control parameters, and communication settings, then apply the configuration.

  3. Verify Robot Observation

    Start observation and confirm that camera feeds and robot states are received correctly.

Step 3

Run & Iterate

  1. Set the Task

    Select the task and language instruction for the current execution.

  2. Run Inference and Control

    Start inference, check the model outputs and processed action trajectories, then enable control to execute the processed actions on the robot.

  3. Monitor, Intervene and Record

    Monitor camera feeds, action trajectories, robot states, and runtime metrics. Pause and intervene through teleoperation when needed, while recording execution and correction trajectories for evaluation and further training.

Documentation

Getting StartedArchitectureConfigurationDataset DemoAdd a ModelAdd a RobotAdd a SmootherTroubleshooting

Developer resources: hands-on video library ｜ full technical docs ｜ developer community

Get Started

Tutorials Video

Hands-on tutorial for Open-RAIL

All tutorial videos are narrated in Chinese. Please feel free to contact us if you need assistance and do not understand Chinese.

Quick Start: Get Familiar with Open-RAIL

Walk through the Quick Start video and learn the basic workflow, core controls, and key features of Open-RAIL.
